100kVA 415Volts Diesel Generator
Overview
Our 110kVA diesel generator has Cummins reliability at its core, enclosed in one of the best canopies and feature sets you can find in the country. Water cooling, a large fuel tank, top-of-the-line safety features, a tough outdoor-ready exterior, and a silenced canopy aren’t added bonuses, they’re standard. All of these and the peace of mind of a Cummins Australian warranty make for a prime piece of machinery. This is one basket you can put all your eggs into with confidence.
Features

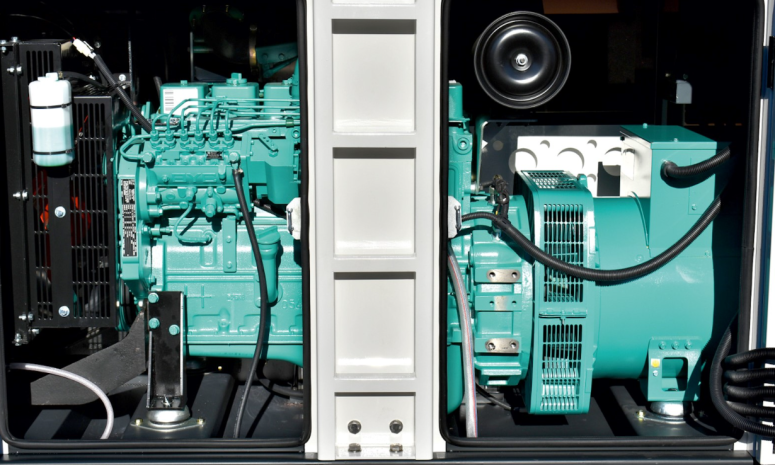

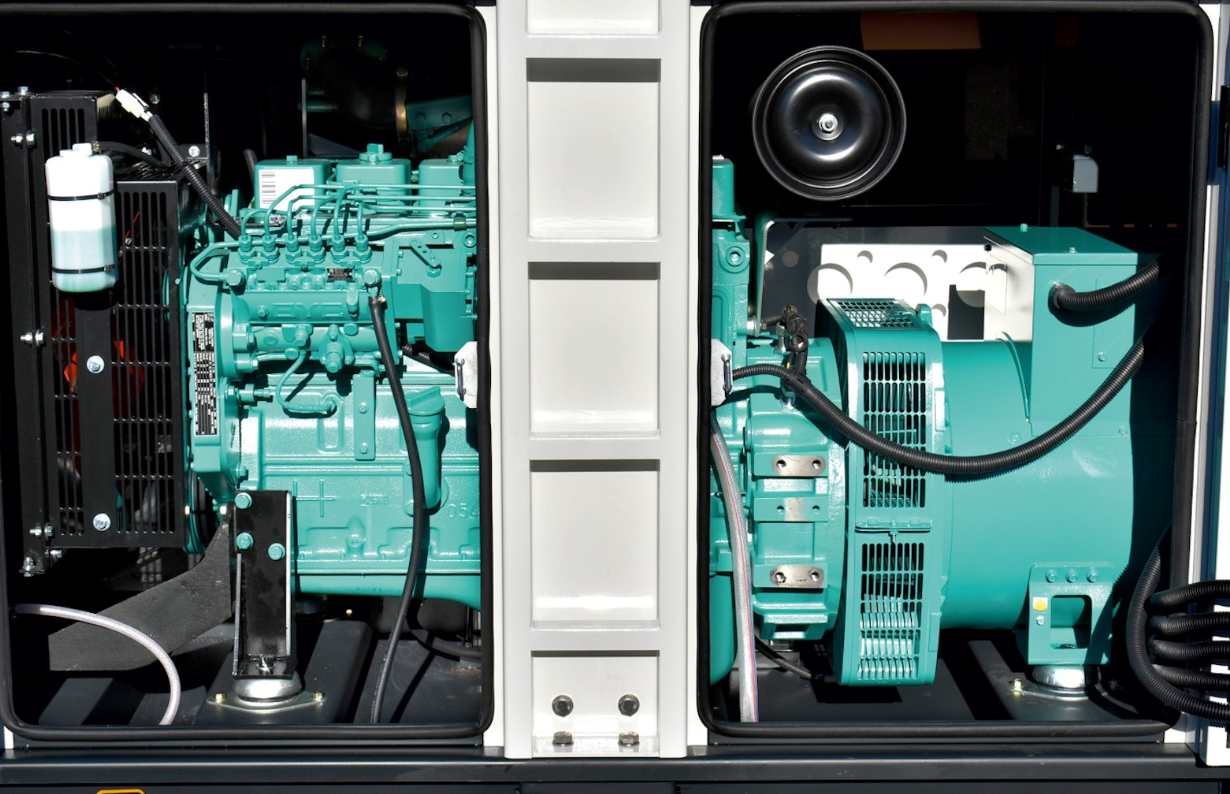

- Equipped with the world-renowned Cummins 6 Cylinder Diesel turbocharged engine
- Tough-built, silenced, weather-resistant canopy designed for outdoor
- Watercooled, will run and withstands extremely hot conditions while it also extends the life of the engine over time
- 23 Hours continuous stable power at prime load, thanks to its low 1500 RPM engine which generates more stable operation
- 4-Pole, brushless alternator with AVR outputting low THD sine wave power
- 65dbA at 7 metres, just similar to a normal conversation
- Diesel fuelled - 22 Litres/Hour at prime load
- Australian Safety Standards compliant
- Designed with forklift slots for easy transportation
- Oil and filters are all you need
Specifications
| Prime Power | 80kW / 100kVA 415Volts 140Amps |
| Phase Voltage | Three Phase 415 Volt |
| Frequency | 50 Hertz |
| Engine | Cummins 6 Cylinder Diesel Turbo Charged 6BT5.9-G2 |
| RPM | 1500/min |
| Cooling Method | Water Cooled - Rated For Australia's North |
| Alternator | Stamford Three Phase 4 Pole Brushless Synchronous -/c AVR |
| Starter System | 24-volt Electric - Battery Included |
| Noise Level | 65 dBA at 7 metres |
| Fuel Tank Capacity | 425 Litres (-/c Fuel Gauge) |
| Running Time | 23 Hours Continuous (prime load) |
| Fuel Consumption | 22 litres/hour (prime load) |
| ATS (Mains Failure) | Easy Connect Plug (ATS Box Optional) |
| Single Phase Outlets | 1 x 15 Amp IP66 |
| Three Phase Outlets | 1 x 20 Amp IP66, 2 x 32 Amp IP66 |
| Hardwire Terminals | Yes |
| RCD / RCBO | Australian Standard (IP67 Enclosed) |
| Weight | 1800 kg |
| Dimensions | 278 L x 100 W x 184 H cm |
